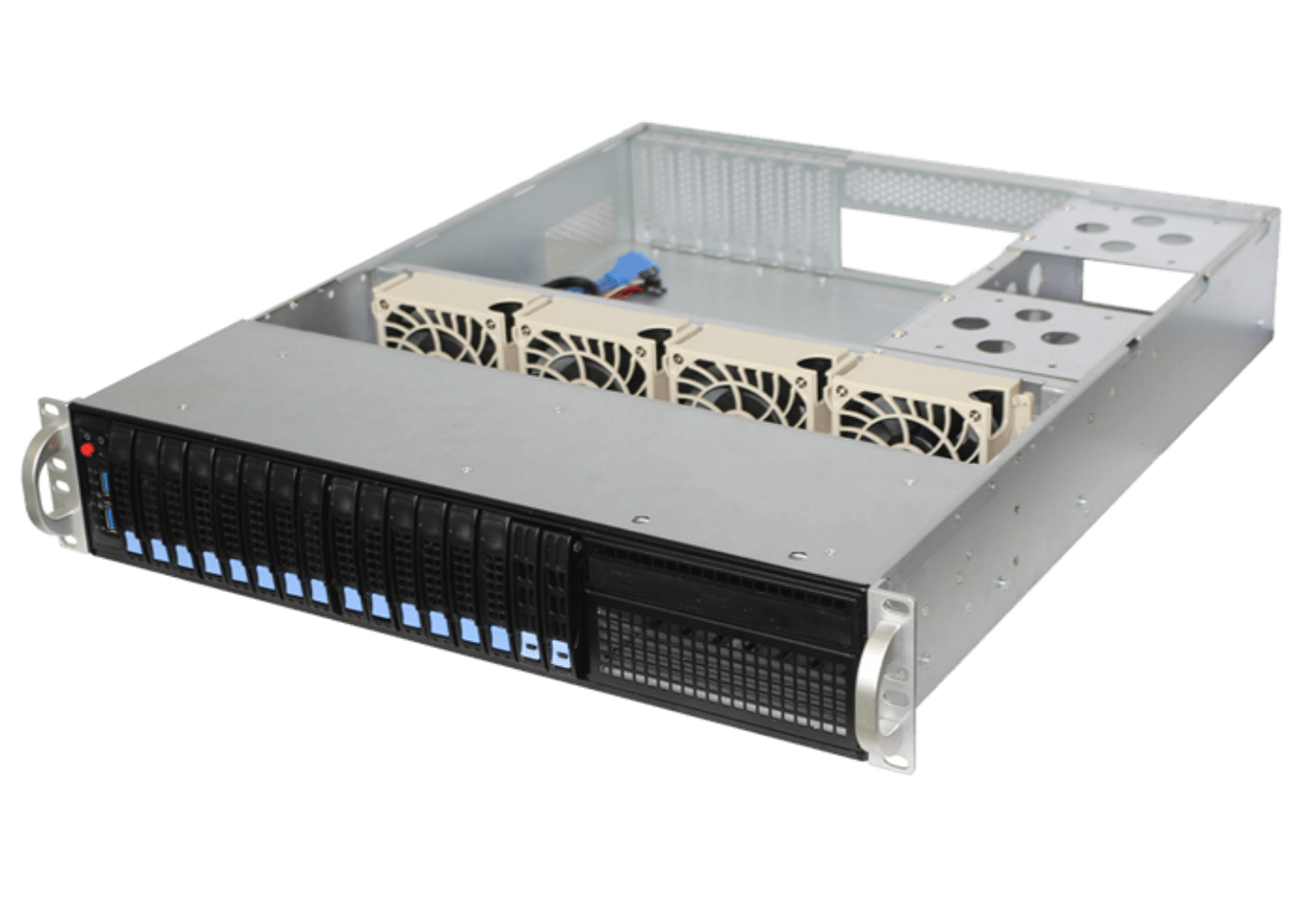

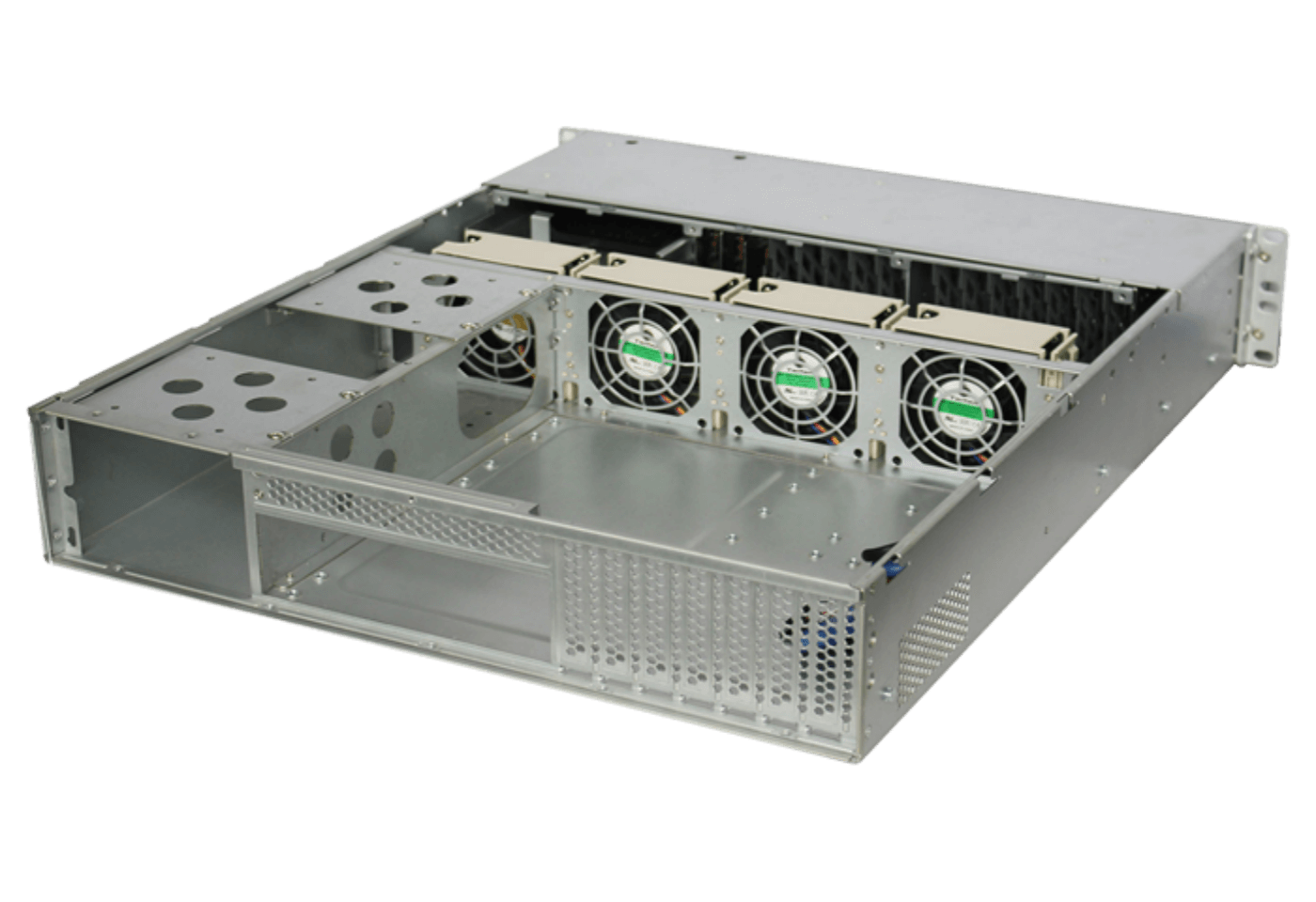

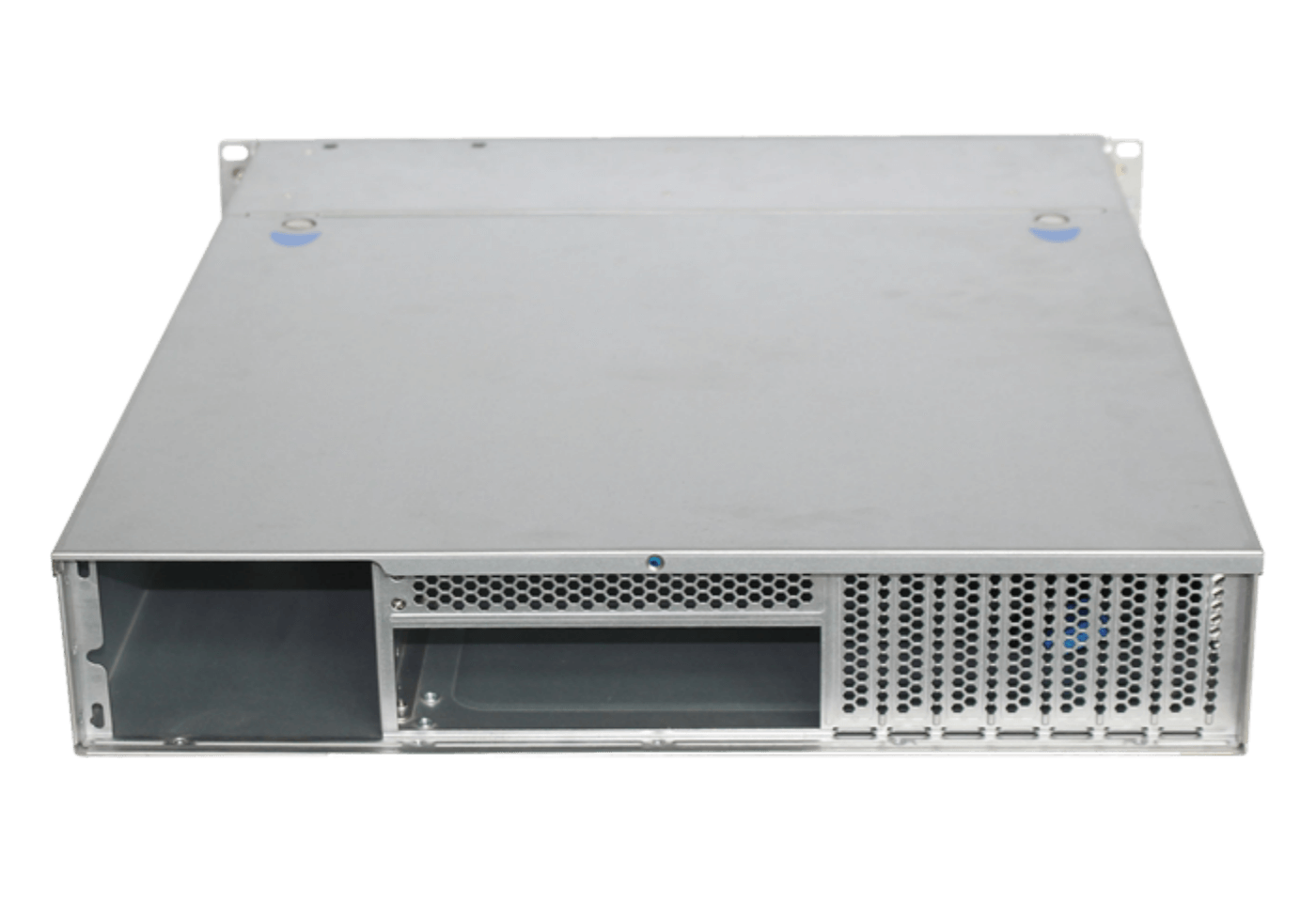

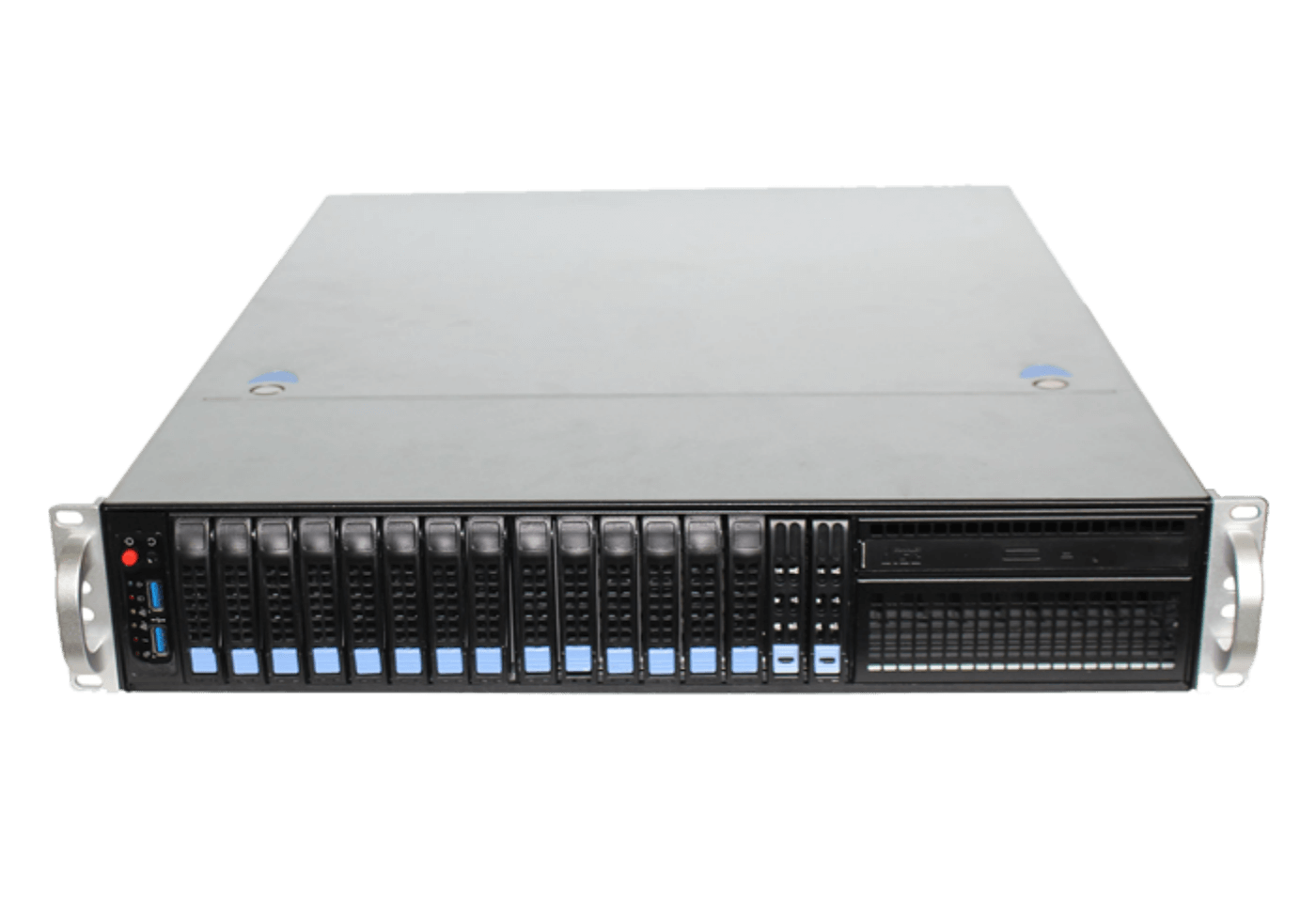

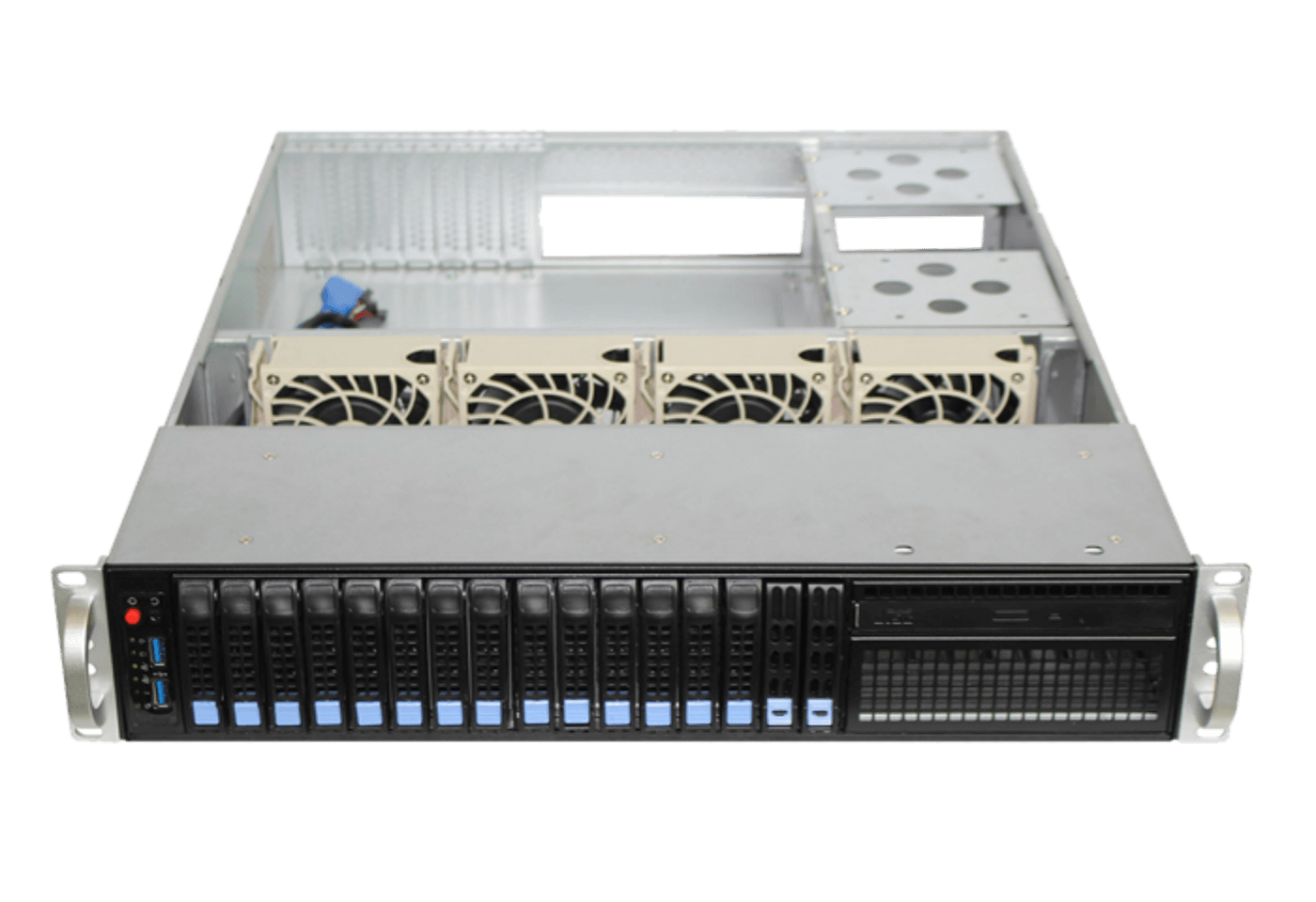

S26516 Series


2U Entry Computing and Storage Server Chassis

With sixteen 3.5" HDD hot-swap bays, high operation temperature and flexible fan configuration, it can address the demands in a broad range of applications.

Products

Quick Search

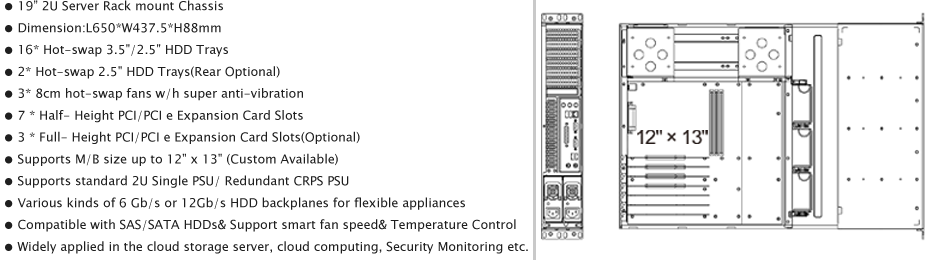

Features


    Form Factor

    2U Rackmount Chassis

    M/B Form Factor

    Motherboard MAX 12"x13".

    Customer Specified (OEM Available)

    Dimensions (Dx Wx H)

    650 x 437.5 x 88(mm)
    25.56" x 17.2" x 3.5"

    Material

    High quality Anti-finger 1.0 mm SGCC& Super ABS ROSHs

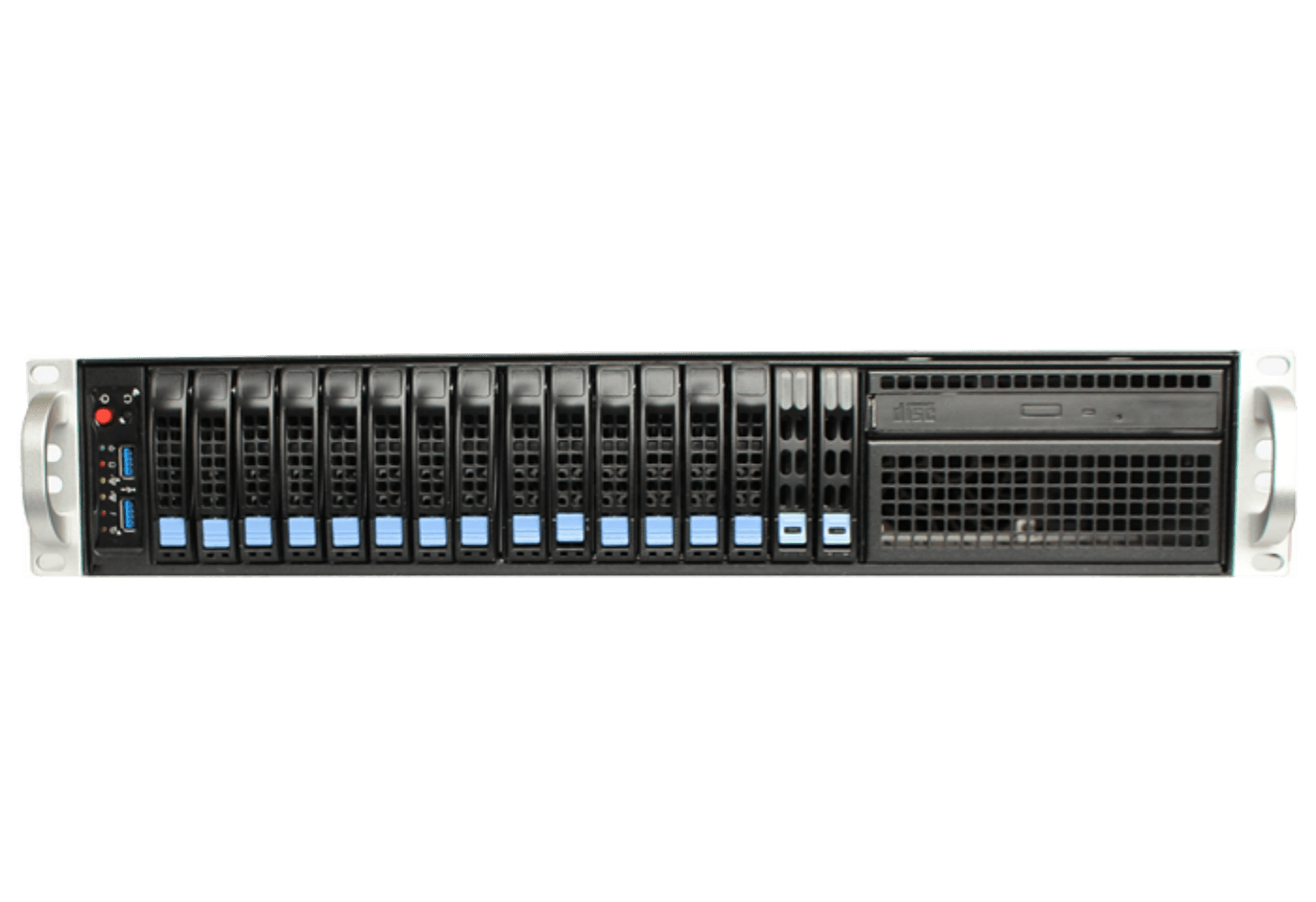

    Front Control

    1x Power On/Off, 1x System Reset, 1 x Unit Identification (UID) button,2 x USB 2.0

    Indicators

    1x Power Status, 2x LAN Activity, 1x HDD Status,1x Fan Fail/System Over Heat LED

    1 x Unit Identification (UID) LED

    Hotswap Backplane

    1)6GB SATA Hot-swap Backplane (Default)

    2)6GB Mini SAS Hot-swap Backplane

    3)12GB Mini SAS HD SGPIO Hot-swap Backplane

    Drive Bays

    External 3.5"/ 2.5"16
    Internal 2.5"

    Slim ODD 2.5"

    Cooling Fans

    Default 4x 80mm(T=28mm, up to 48mm), PWM

    6x 30mm Fan Bays

    Expansion Slots

    7*half-height / 3*full-height

    PSU Form Factor

    2U single/redundant power supply.

    Color

    Front Panel Coated Black (Others customized)

    Application

    Cloud Storage, Cloud Computer, Huge Storage,Datacenters, NVR, Security Monitor Industry etc.

    Net Weight

    9.15Kg

    Gross Weight

    10.2Kgs

    Unit Carton Size

    21x80x59 cm

    Customized

    Available

    File Name : Format: Size: Download:

    Order Code

    M/B

    HDD Backplane

    PSU

    Rear Window

    Slide Rail

    CS25606A6

    12"x10.5"

    6-Bay 2.5"/3.5", 6GB SATA

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS25608A6

    12"x10.5"

    8-Bay 2.5"/3.5", 6GB SATA

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS25608M6

    12"x10.5"

    8-Bay 2.5"/3.5", 6GB mini SAS

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26508A6

    12"x13"

    8-Bay 2.5"/3.5", 6GB SATA

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26508M6

    12"x13"

    8-Bay 2.5"/3.5", 6GB mini SAS

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26508G12

    12"x13"

    8-Bay 2.5"/3.5",12GB mini SAS HD SGPIO

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS25610A6

    12"x10.5"

    10-Bay 2.5"/3.5", 6GB SATA

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26512M6

    12"x13"

    12-Bay 2.5"/3.5", 6GB mini SAS

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26512G12

    12"x13"

    12-Bay 2.5"/3.5",12GB mini SAS HD SGPIO

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CS26524G12

    12"x13"

    24-Bay 2.5",12GB mini SAS HD SGPIO

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    CT2558M6

    12"x9.6"

    8-Bay 2.5"/3.5", 6GB mini SAS

    Option 500W/600 2U single

    550W/650 2U Redundant

    7-Slot,HF

    (Option  3-Slot,FF)

    Option

    If you want to know more about the price and technical support, please contact us.

    *

    *

    *
